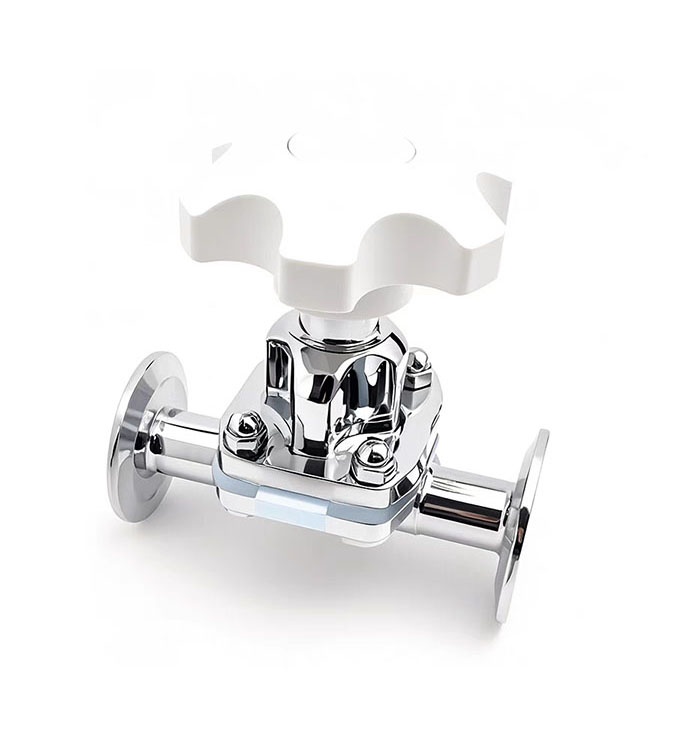

Stainless Steel Tri Clamp Diaphragm Valve
Tri clamp Diaphragm Valves are fluid control devices designed for high-purity environments, widely used in industries with strict hygiene requirements such as food, pharmaceuticals, and bioengineering.
Size：1/2" -2"（DN15-DN50)
Connection：Tri clamp，Thread，Weld，Flange
Opeation：Manual，Pneumatic actuator，Electric actuator
Type: Through type
Size：1/2" -2"（DN15-DN50)
Connection：Tri clamp，Thread，Weld，Flange
Opeation：Manual，Pneumatic actuator，Electric actuator
Type: Through type
Materials:
Body Materials: AISI-304 or AISI-316L
Diaphragm: EPDM/Teflon/Silicon
Diaphragm: EPDM/Teflon/Silicon
Gasket Material:Silicon, EPDM, VITON, NBR ( Valve seat and gasket comply with FDA 21CFR177.2600)
Surface treatment:
Inside surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment:Ra32 ~ 64µin (0.8 ~ 1.6µm)
Temperature:
EPDM: 14 ~ 248°F (-10 ~ 120°C)
VMQ: -58 ~ 356°F (-50 ~ +180°C)
FPM: -22 ~ 446°F (-30 ~ +230°C)
Sterilization temperature: 302°F (150°C, Max. 20 min)
