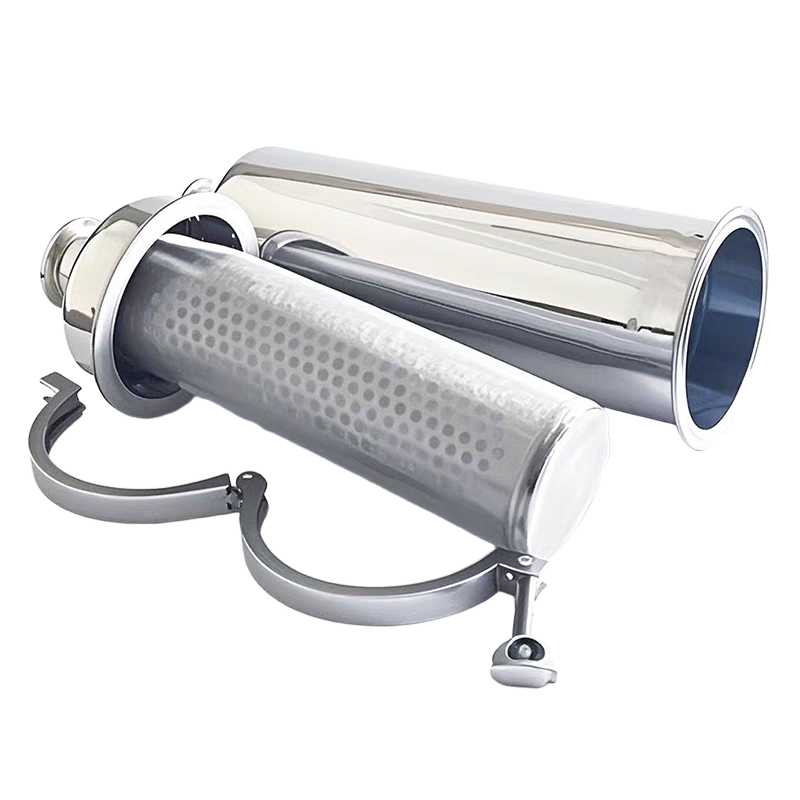

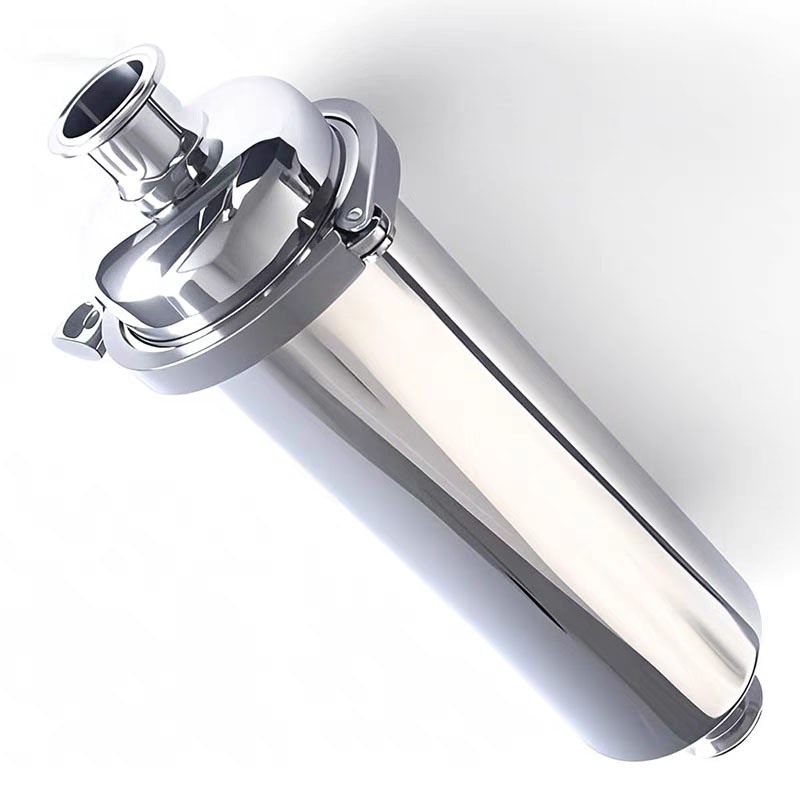

Sanitary Stainless Steel Straight Type Strainer/Filter

Sanitary straight strainer are widely used in food processing, cosmetics, chemical industries, and pharmaceutical auxiliary systems to protect pumps, instruments, and equipment from particle damage. Compact design, high filtration efficiency, and easy maintenance make them ideal for beverage, pharmaceutical, and dairy industries.

Specifications:
Size: 1" (DN15) – 6" (DN150)
Working Temp.: -10℃ to 120℃
Screen Mesh: 0.5mm–2.0mm (30–300 mesh)
Material : SS304/SS316
Treatment: Mirror Polishing (Ra≤0.8μm)
Sealing Material: Rubber/PTFE/Silicon
