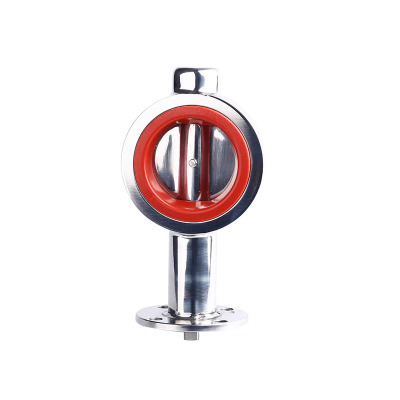

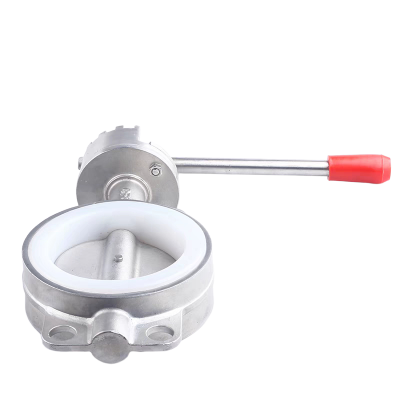

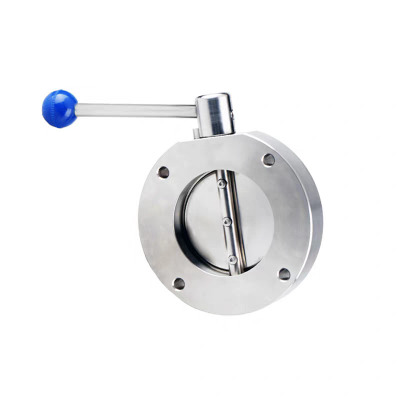

Wafer Butterfly Valve
The wafer butterfly plate is driven by the valve stem to rotate for opening and closing. It features a compact structure, light weight and easy installation, which can be clamped between two flanges to save space.
Materials:
Body Materials: AISI-304 or AISI-316L
Sealing Material:Silicon, EPDM, VITON, NBR, Metal
Temperature:
EPDM: 14 ~ 248°F (-10 ~ 120°C)
VMQ: -58 ~ 356°F (-50 ~ +180°C)
FPM: -22 ~ 446°F (-30 ~ +230°C)
Sterilization temperature: 302°F (150°C, Max. 20 min)
End connections:wafer
Pressure:
Working pressure: ≤10bar (145psi)
Max. pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
