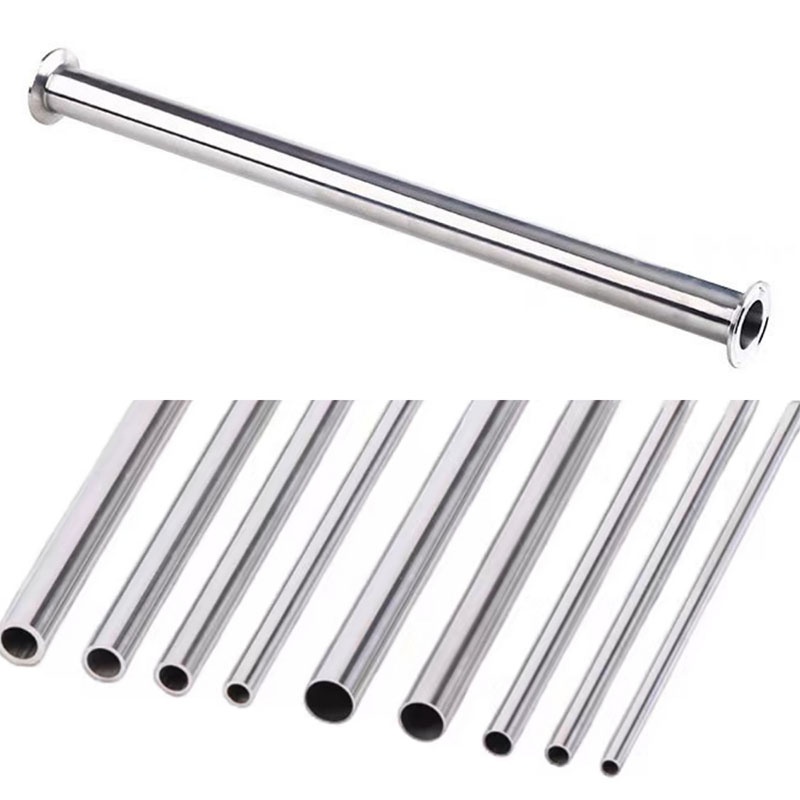

Stainless Steel Pipe

Materials:
Body Materials: AISI-304 or AISI-316L
Gasket Material:Silicon, EPDM, VITON, NBR ( Valve seat and gasket  comply with FDA 21CFR177.2600)

Surface treatment:
Inside surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment:Ra32 ~ 64µin (0.8 ~ 1.6µm)

Temperature:
EPDM: 14 ~ 248°F (-10 ~ 120°C)
VMQ: -58 ~ 356°F (-50 ~ +180°C)
FPM: -22 ~ 446°F (-30 ~ +230°C)
Sterilization temperature: 302°F (150°C, Max. 20 min)

End connections:
butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.

Pressure:
Working pressure: ≤10bar (145psi)
Supply pressure for air actuator: 5 ~ 8bar (70 ~ 116psi)
Max. pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Standard Design:
Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
Available in sizes from DN15 / 1/2" to DN250 / 10"
End connection: Butt-weld, Clamp, Male, Nut, Liner or Flange or others upon request.
