Hongfeng Machinery Technology Co., Ltd
Double Rotor Metering Valve

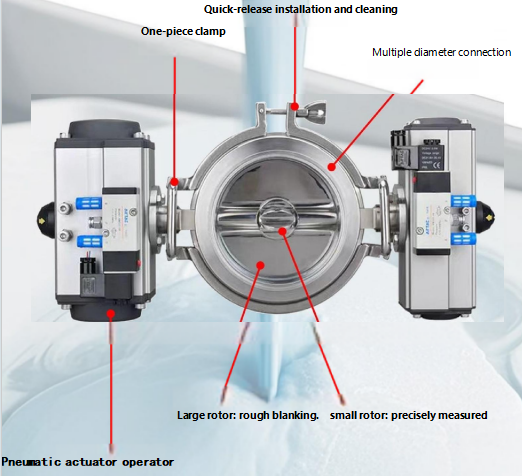

Double rotor metering valve consists of two rotors,the larger rotor is used for coarse measurement, and the small rotor is used for precise measurement.The operation and use of this valve must be used in conjunction with the batching weighing system.The clamp type assembly method is convenient for users to disassemble and assemble quickly.This valve is mainly used for the classification and metering of materials and granular materials.
Produce Feature:

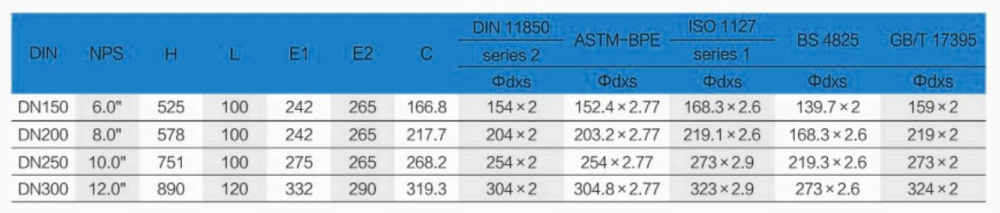

◆Specifications:6.0",8.0",10",12"
◆Working pressure:-0.1~+0.5Mpa
◆Working temperature:-20℃~+135℃
◆Metal material:304,316L
◆Sealing material:PTFE(standard confiquration)
◆Connection standard:ASME-BPE
◆Connection method:welded,clamped,etc.
◆Large rotor actuator:0-90 degree(butterfly rotor),0-180 degree(star rotor)
◆Small rotor actuator:0-180 degree actuator,pneumatic motor,and servo motor
Produce Feature:
◆Specifications:6.0",8.0",10",12"
◆Working pressure:-0.1~+0.5Mpa
◆Working temperature:-20℃~+135℃
◆Metal material:304,316L
◆Sealing material:PTFE(standard confiquration)
◆Connection standard:ASME-BPE
◆Connection method:welded,clamped,etc.
◆Large rotor actuator:0-90 degree(butterfly rotor),0-180 degree(star rotor)
◆Small rotor actuator:0-180 degree actuator,pneumatic motor,and servo motor
