Tri Clamp Baiting Valve
Tri Clamp baiting valves are commonly used in pneumatic conveying systems. For positive pressure systems or negative pressure drying, powdery or granular materials fall by gravity into the star-shaped vane chambers on the top and sides. The vane rotor is driven by a low-speed pneumatic motor (speed adjustable), and when the impeller rotates to the lower part, the powder is discharged by gravity, continuously and uniformly feeding into the next container. This effectively overcomes the drawbacks of ordinary butterfly valves that cannot control the discharging speed and quantity.
Product Features:
Adjustable working speed
Long continuous operation
Extended valve service life
Economically proven advantages for corrosive materials and solids
Spherical valve cavity design ensures uniform material discharge
Dual shaft seals
Multiple bearings

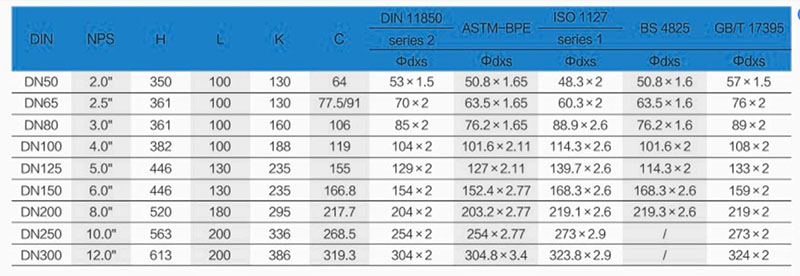

◆Specification:3.0"~100"
◆Working pressure:-0.1Mpa~+0.5Mpa
◆Control of air supply pressure:0.4~0.8Mpa
◆Actuator selection:
0-180 degree actuator(standard configuration)
0-90degree actuator,pneumatic rotary motor,servo motor(optional)
◆Working temperature:-20℃-+150℃
◆Metal material:
304、316L(parts in contact with the medium)
304(part snot in contact with the medium)
◆Seal material:Viton,accordance with FDA 21 CRF 177.2660 (standard configuration)
◆Surface treatment:
Ra<0.4(parts in contact with medium)
Ra<0.8(the parts not in contact with the medium)
◆Sealed pressure:non airtight(standard)
◆Sterilization method:SIP
◆Explosion-proof Rating:ATEX 2 GD T4
◆Connection standard:DIN11850 series 2,ASME-BPE,ISO1127 series 1
◆Connection method:clamped,welded
