Sanitary Stainless Steel Strainer/Filter

Sanitary strainer are widely used in food processing, cosmetics, chemical industries, and pharmaceutical auxiliary systems to protect pumps, instruments, and equipment from particle damage. Compact design, high filtration efficiency, and easy maintenance make them ideal for beverage, pharmaceutical, and dairy industries.

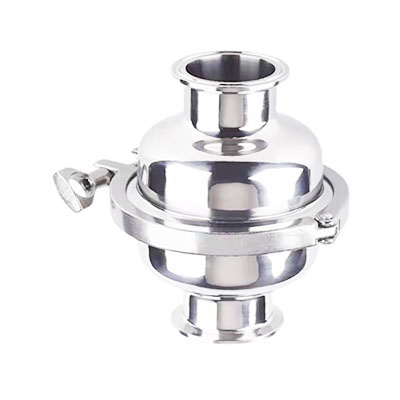

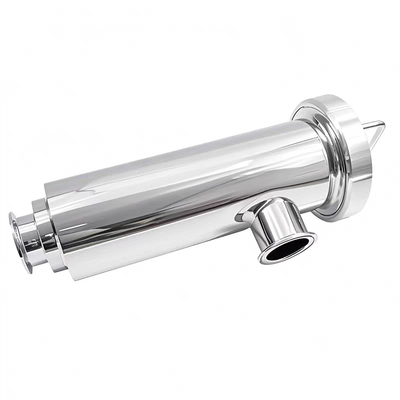

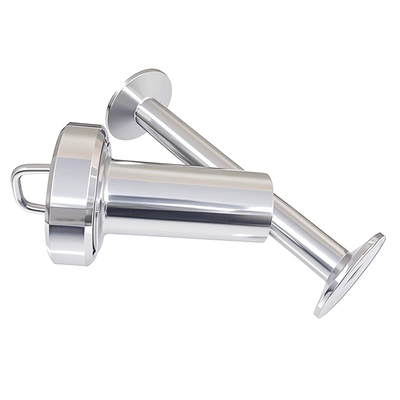

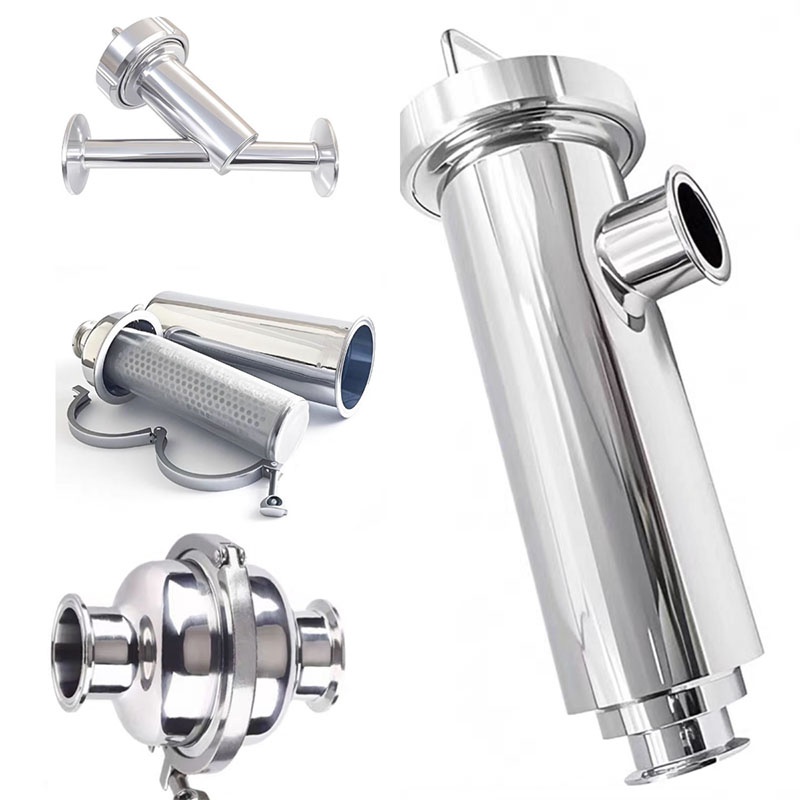

Our stainless steel strainer come in four types: Straight-through (compact for horizontal piping), Angular (space-saving for 90° turns), Y-Type (low resistance for high-flow media), and Ball-Type ( adjustable for flexible maintenance).

Connection Options:
Tri-clamp clamp: Sanitary quick-disassembly design for easy cleaning.
Welding: Leak-proof sealing for high-pressure or permanent systems.
Threaded: Versatile installation for diverse pipelines.

Specifications:
Size: 1" (DN15) – 6" (DN150)

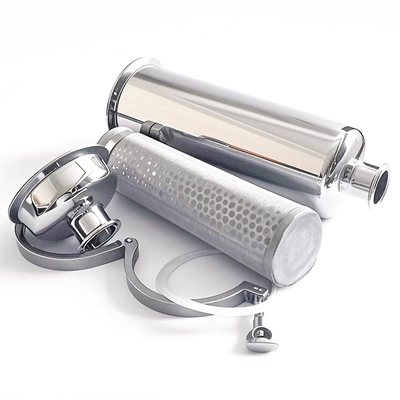

Easy disassembly: Remove clamps instantly.
Working Temp.: -10℃ to 120℃
Screen Mesh: 0.5mm–2.0mm (30–300 mesh)
Material : SS304/SS316
Treatment: Mirror Polishing (Ra≤0.8μm)
Sealing Material: Rubber/PTFE
