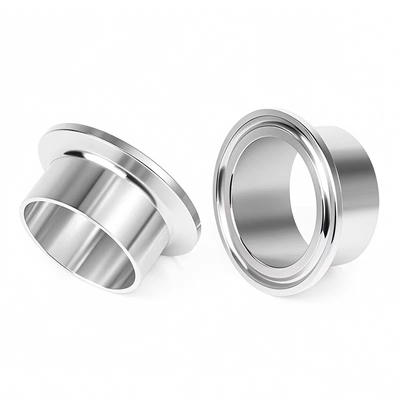

Sanitary Stainless Steel Tri Clamp Ferrule
Sanitary Stainless Steel Tri Clamp Ferrule
Sanitary stainless steel tri clamp ferrule, made of 304 or 316 stainless steel, are designed for high-hygiene industries like food, pharmaceuticals, and bioengineering. Featuring mirror-polished surfaces and crevice-free structures, they ensure corrosion resistance, durability, and compliance with food standards FDA117.2600, eliminating contamination risks.
Three connection types are available:

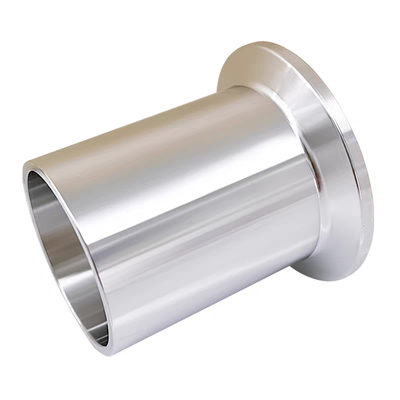

- Welded: Permanent leak-proof sealing for high-pressure or fixed pipelines.

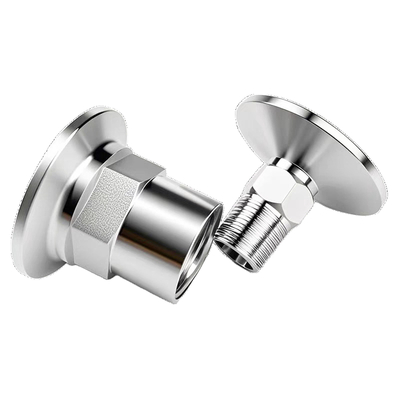

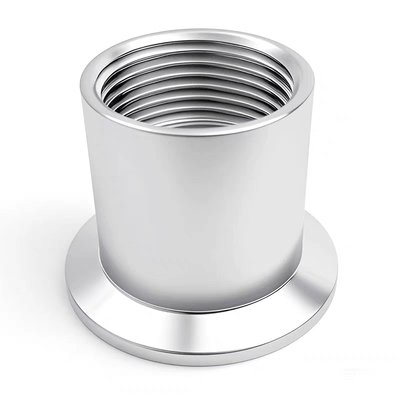

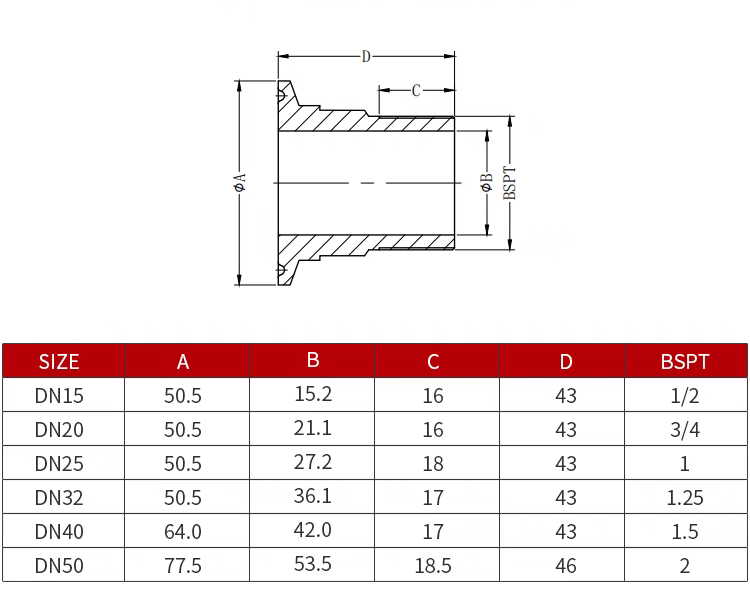

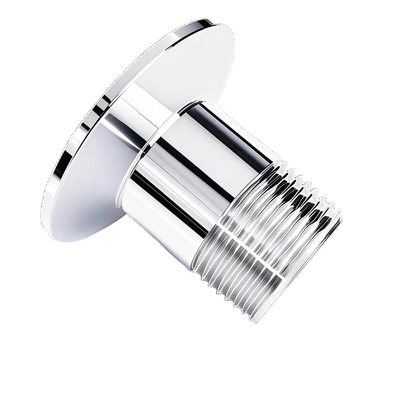

- Threaded: Flexible installation with multi-standard compatibility.

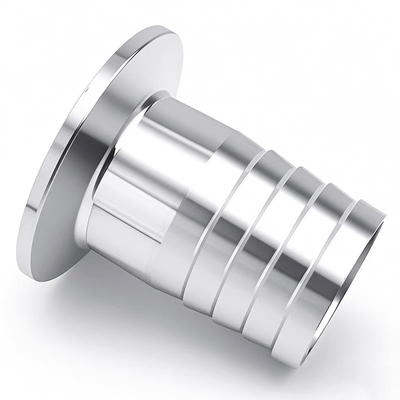

- Hose-type: Equipped with sanitary clamps for rapid elastic hose connections, boosting efficiency.
All fittings have smooth inner walls and consistent bores to minimize pressure loss and turbulence, ensuring fluid purity.
Ideal for dairy filling, fermentation systems, CIP cleaning, and pharmaceutical fluid transfer, these fittings cover DN15-DN200 sizes, operate from -30℃ to 150℃, and offer seals (silicone, EPDM, or PTFE) for harsh conditions like acids, alkalis, or high heat. Modular design simplifies maintenance, supporting efficient production and compliance.

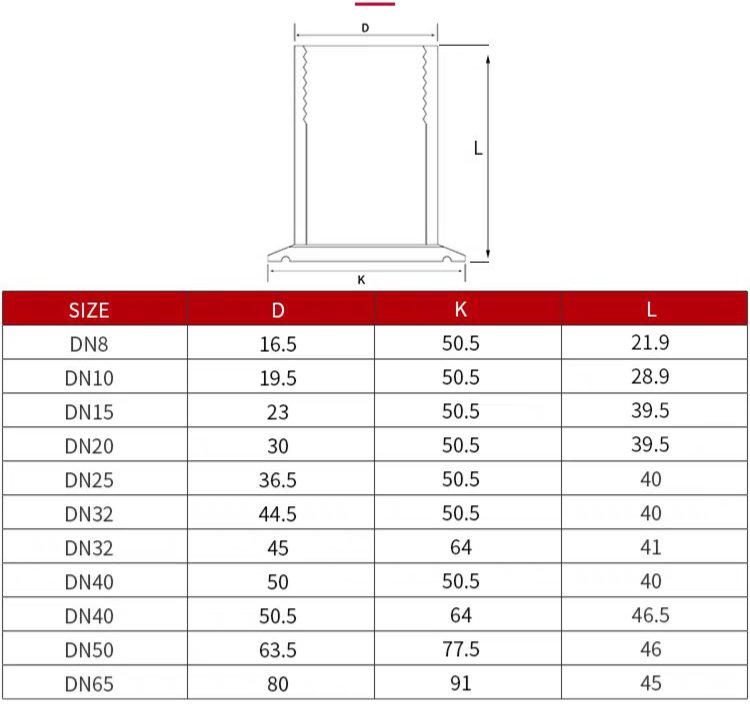

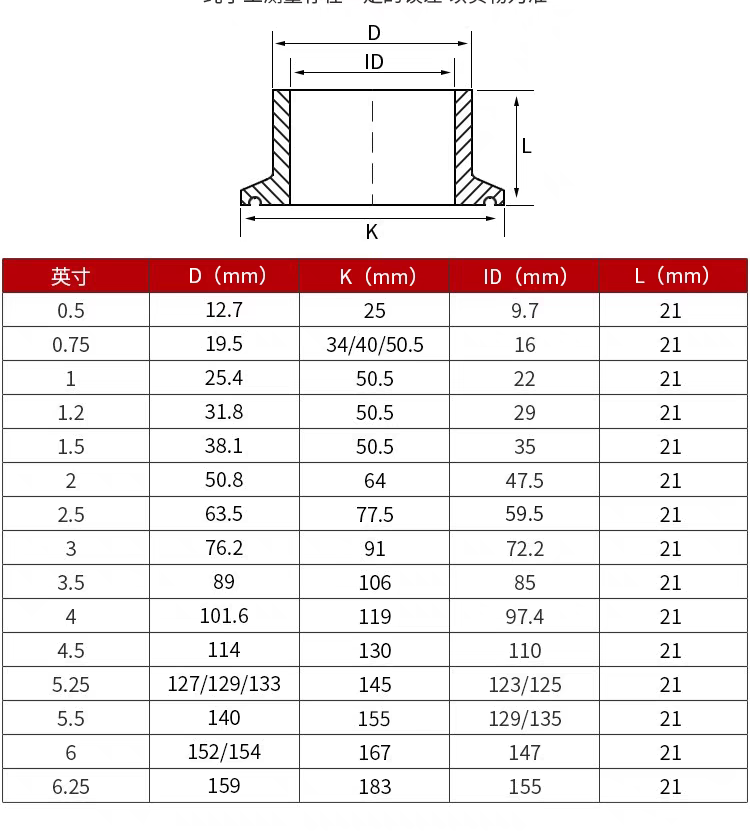

Size：1/2" -12"（DN15-DN350)
Material ：SS304,SS316,duplex 2205
Connection：Tri clamp，Thread，Weld，Flange
