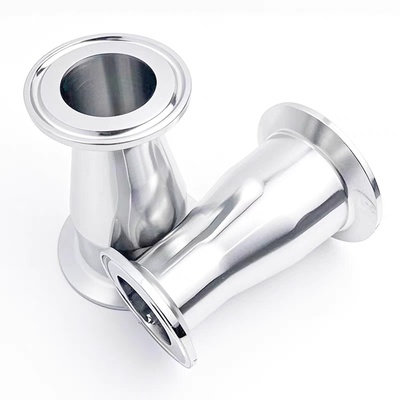

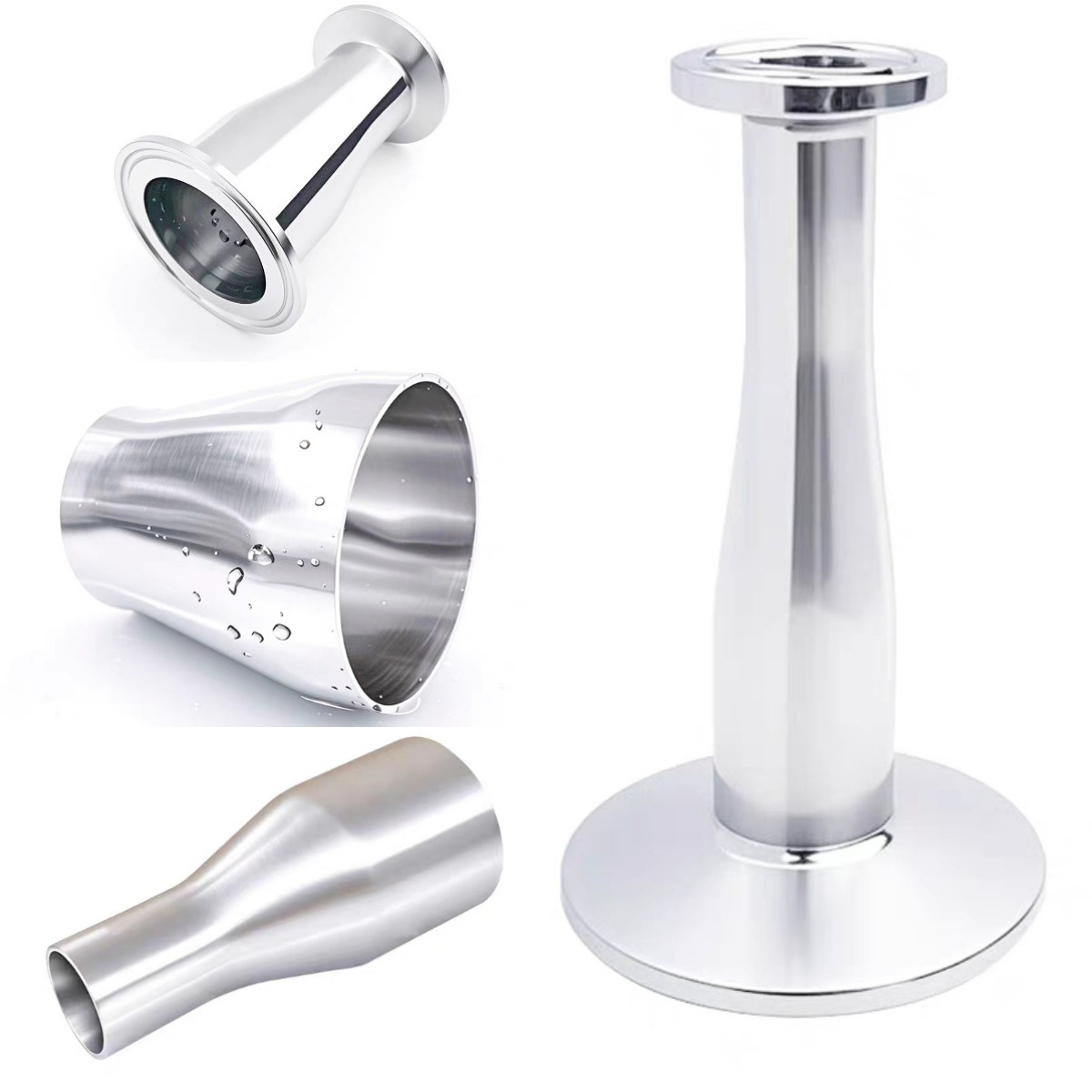

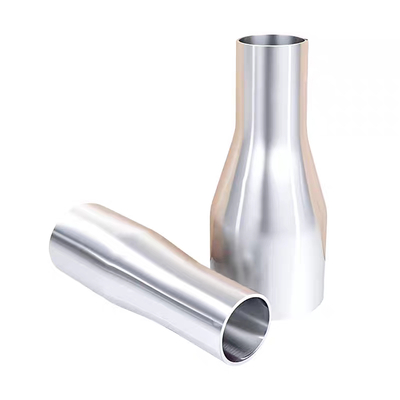

Stainless Steel Sanitary Reducer - High-Purity Pipeline Adaptation Expert

Designed for food, pharmaceutical, and bioengineering industries with strict hygiene standards. Made of 304/316 stainless steel, offering corrosion resistance, high strength, and easy cleaning. Mirror-polished surface and dead-space-free structure comply with food-grade standards, suitable for liquid, gas, and particle-containing media.

Design Options:
Concentric: Aligned centerline minimizes turbulence and pressure loss.
Eccentric: Flat-bottom structure prevents gas accumulation, ideal for gaseous/particulate media.

Specifications:
Size: DN15-DN350

Surface treatment:

Inside surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)

Outside surface treatment:Ra32 ~ 64µin (0.8 ~ 1.6µm)

End connections:
butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.

Temperature:
EPDM: 14 ~ 248°F (-10 ~ 120°C)
VMQ: -58 ~ 356°F (-50 ~ +180°C)
FPM: -22 ~ 446°F (-30 ~ +230°C)

Widely used in dairy processing, fermentation pipelines, pharmaceutical systems, and CIP setups. Modular design simplifies installation/maintenance, ensuring compliance and operational efficiency.
