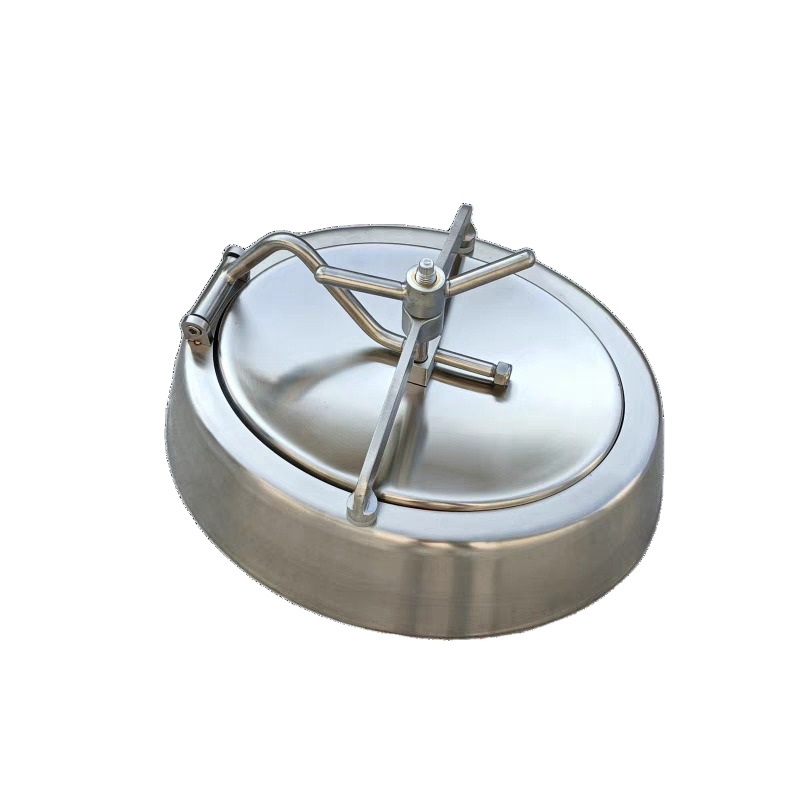

Stainless Steel Oval Access Tank Cover
Customization Services
Supports non-standard size, pressure rating, and surface treatment customization. Offers welding, flange, and other connection methods to meet personalized needs.
Access Tank Cover is used on tanks or containers where a closeable means of access to the interior of the vessel is required. The main features are angled shaped frame ensuring a shadowless installation optimal for CIP application.
Working principle
Open the cover by loosening the handle. For inspection purposes the cover can then be turned into the tank. If it is necessary to physically enter the tank, the cover can be removed at the double hinge or swung out of the tank, depending on the model. The seal is hygienically positioned and is not affected by positive or negative pressure in the tank.
Inner surface:Mirror polished Ra0.4um-0.6um
External surface:polishing treatment,matte treatment,sandblasting treatment(according to customer requirements)
Pressure:0.1-0.4MPa
Gasket:EPDM,NBR,Silica gel(Silica),FKM accorance FDA117.2600
Material:AIS1304(1.4306)/316L(1.4404)
Customization Services
Supports non-standard size, pressure rating, and surface treatment customization. Offers welding, flange, and other connection methods to meet personalized needs.
