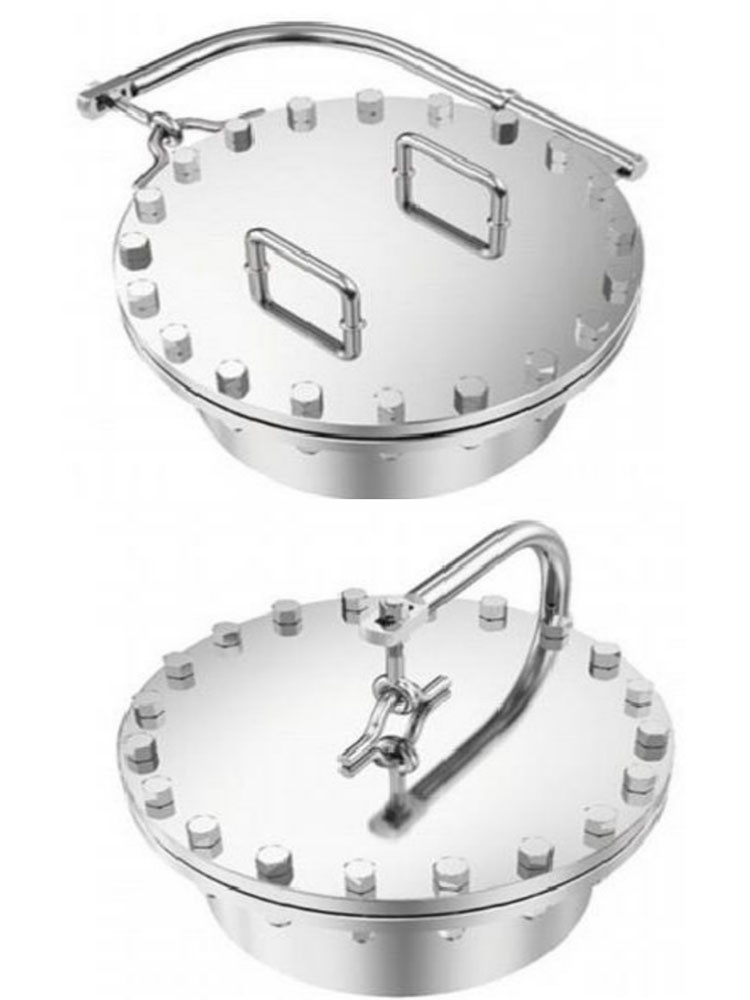

Stainless Steel Flange Manhole Cover
The flange manhole is specially designed for industries with strict hygiene requirements such as food, beverage and pharmaceuticals. which are corrosion-resistant, easy to clean and comply with multiple hygiene standards . It adopts a unique flange connection method, featuring convenient installation and excellent sealing performance to effectively prevent leakage and ensure the purity of the medium. With various specifications ranging from DN25 to DN100, it can be adapted to tanks of different sizes. It has a wide working temperature range, a high inner surface finish, and the seals meet FDA standards. Choose it to add a reliable guarantee to your production process.
Feature:
★ External opening manhole cover
★Rotating arm handle
surface:Ra0.8μm-0.4μm
★Outer surface:Miror polished,Matte,sand-blasting finished
★Maximum pressure:5-10bar
★Gasket:PTFE
★Height:340mm
★Material:AISI304(1.4301)/316L(1.4404)
The flange manhole is specially designed for industries with strict hygiene requirements such as food, beverage and pharmaceuticals. which are corrosion-resistant, easy to clean and comply with multiple hygiene standards . It adopts a unique flange connection method, featuring convenient installation and excellent sealing performance to effectively prevent leakage and ensure the purity of the medium. With various specifications ranging from DN25 to DN100, it can be adapted to tanks of different sizes. It has a wide working temperature range, a high inner surface finish, and the seals meet FDA standards. Choose it to add a reliable guarantee to your production process.
Feature:
★ External opening manhole cover
★Rotating arm handle
surface:Ra0.8μm-0.4μm
★Outer surface:Miror polished,Matte,sand-blasting finished
★Maximum pressure:5-10bar
★Gasket:PTFE
★Height:340mm
★Material:AISI304(1.4301)/316L(1.4404)
Customization Services
Supports non-standard size, pressure rating, and surface treatment customization. Offers welding, flange, and other connection methods to meet personalized needs.
