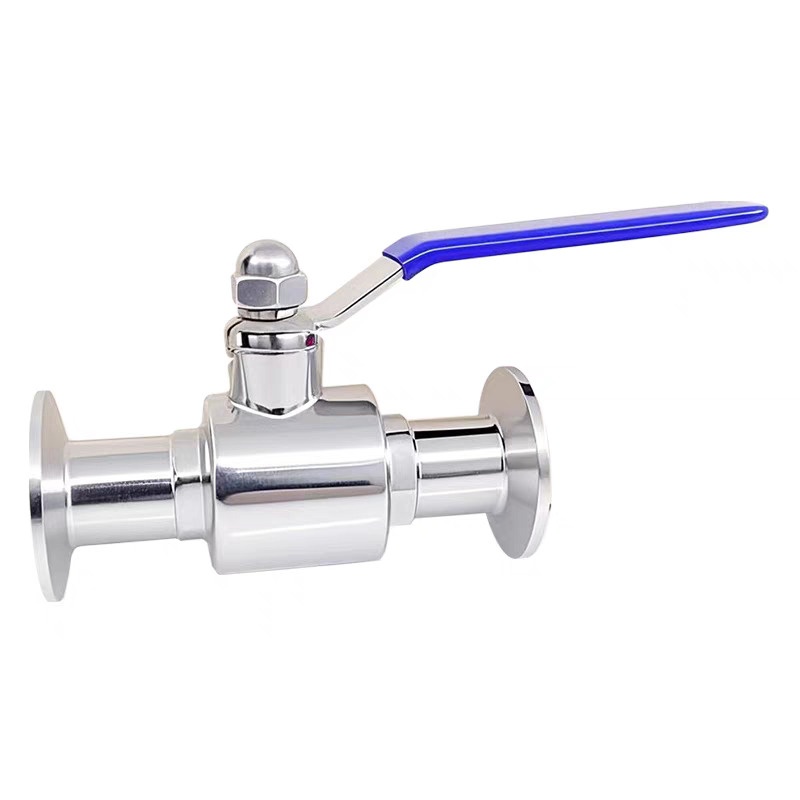

Tri Clamp Ball Valve
The stainless steel ball valve series are engineered for demanding industries like food, pharmaceuticals, and chemicals, addressing both hygienic and industrial needs.
Size：1/2" -12"（DN15-DN350)
Material ：SS304,SS316,duplex 2205
Connection：Tri clamp
Opeation：Manual，Pneumatic actuator，Electric actuator，Bare stem
Size：1/2" -12"（DN15-DN350)
Material ：SS304,SS316,duplex 2205
Connection：Tri clamp
Opeation：Manual，Pneumatic actuator，Electric actuator，Bare stem
Pressure:
Working pressure: ≤10bar (145psi)
Max. pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Surface treatment:
Inside surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment:Ra32 ~ 64µin (0.8 ~ 1.6µm)
Surface treatment:
Inside surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment:Ra32 ~ 64µin (0.8 ~ 1.6µm)
Standard Design:
Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
