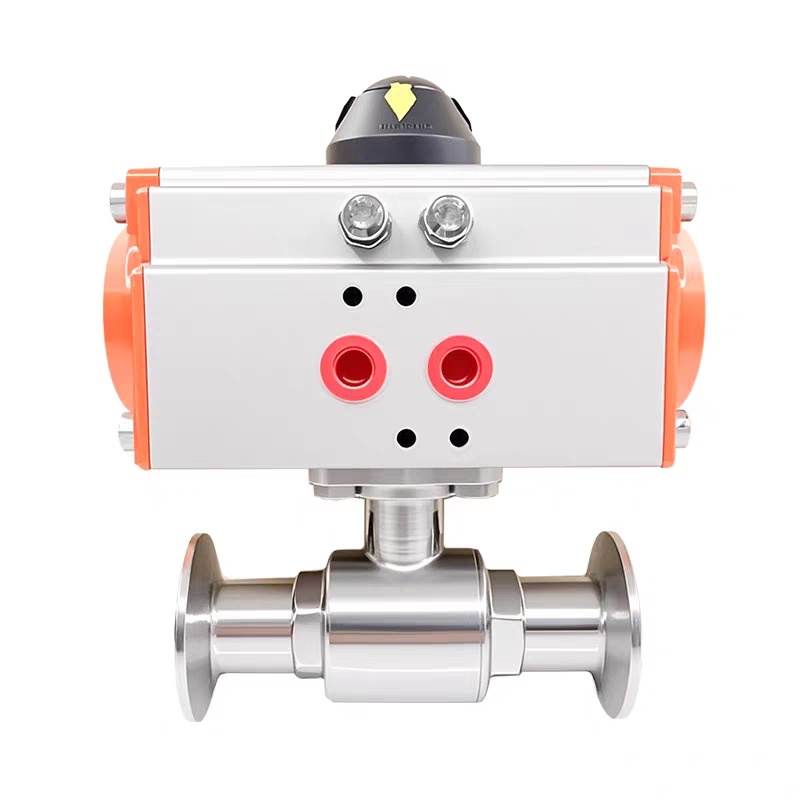

Pneumatic ball valve
The stainless steel pneumatic ball valve series are engineered for demanding industries like food, pharmaceuticals, and chemicals, addressing both hygienic and industrial needs.
Size：1/2" -12"（DN15-DN350)
Connection：Tri clamp
Opeation：Pneumatic actuator
Size：1/2" -12"（DN15-DN350)
Connection：Tri clamp
Opeation：Pneumatic actuator
Materials:
Body Materials: AISI-304 or AISI-316L
Seat Material:PTFE
Surface treatment:
Inside surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment:Ra32 ~ 64µin (0.8 ~ 1.6µm)
Temperature:
EPDM: 14 ~ 248°F (-10 ~ 120°C)
VMQ: -58 ~ 356°F (-50 ~ +180°C)
FPM: -22 ~ 446°F (-30 ~ +230°C)
Sterilization temperature: 302°F (150°C, Max. 20 min)
Pressure:
Working pressure: ≤10bar (145psi)
Supply pressure for air actuator: 5 ~ 8bar (70 ~ 116psi)
Max. pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Standard Design:
Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
